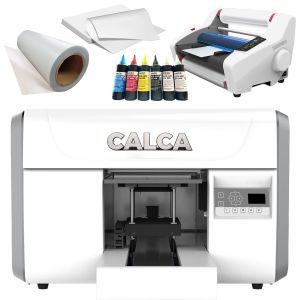

CALCA UV DTF Bundle A3 for Crystal Label Printing Solution, with A3 UV Printer, Laminator, UV Ink, Laminating Plus AB Film
This is a 2-in-1 roll to roll uv printer - Print on A film then transfer (UV DTF printing) or print direct on objects (direct to substrate printing).

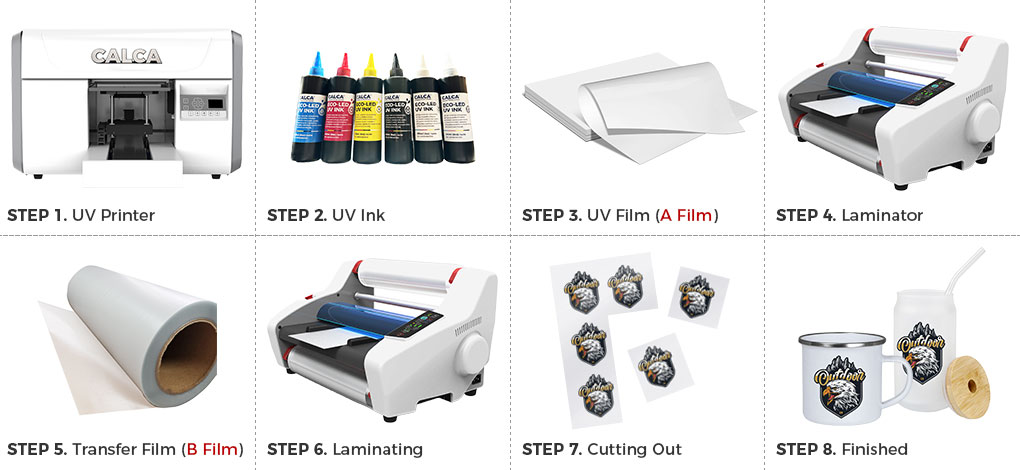

CALCA A3 UV DTF, Crystal Label complete system solution including:
1 set of CALCA A3 LED UV Flatbed Printer;
1 set of Desktop Roll laminating;
100pcs of Crystal Label Film A;
1 roll of Crystal Label Film B;
1 set 8 bottles of UV Ink with CMYKWWVV;
Features:
√ The resolution can reach 1200 dpi, and it can produce up to 8-color output.
√ Compact, less foot print.
√ Humanized design operation panel, convenient and fast operation.
√ Various functions, support flat and roll printing.
√ Simultaneous output of white, color and varnish.
√ High precision lifting vacuum table - the flatness can be controlled within 0.1mm.
√ Intelligent ink supply system - with ink shortage alarm function.
Technical Specs:
Print size: 297 x 420mm(11.69in x 16.53in)
Print Head: EPSON I3200 x 1pc
Nozzle spray force range: 2-3mm(0.0787in-0.0118in)
Number of nozzle: 3200 (Individual)
Distance between nozzles: 1/300inch
Numbers of nozzle rows: 8
Maximum number of supported ink colors: 8
Effective print width: 300npi/1 list, 600npi/1 list, 1200npi/1 list
Droplet ejection performance(Droplet volume and ejection frequency):
2 levels of grayscale 5 pl (43.2KHz)
3 levels of grayscale 6, 12.5 pl (21.6KHz)
4 levels of grayscale 3.8, 6.2, 9.3 pl (21.6KHz)
Print height: 0-85mm(0-3.34in)
Ink type: Environmental UV curing ink
Print version: White and color and varnish print as same time
Printmode: CMYK+WWVV/CMYK+lcLmWW/CMYK+LcLmLkLLk/CMYK+CMYK
RIP Software: Future Rip
Print speed: 0.28-3sqm/h
Highest print solution: 720 x 1200dpi
Connection method: Network cable
Graphic format: Tiff, Jpg, Eps, Pdf, Png
Printer dimension(L x W x H): 100 x 902 x 592cm (39.37 x 35.51 x 23.31in)
Net Weight: 60kg (132.28lbs)
Packing size(L x W x H):112 x 102 x 78cm (44.09 x 40.16 x 30.71in)
Gross Weight: 80kg (176.37lbs)
Power: AC220 / AC110V, 50-60HZ, 1 phase; 140W, 1.3A(110V) / 0.6A(220V)
Working environment:Temperature:20℃-28℃(68℉-82.4℉); humidity: 35%-65%
Details
 |
|
| EPSON I3200 print head - 1200 dpi reaches the highest resolution in the industry, creating excellent photo quality. | Lifting vacuum table - High-precision honeycomb hard aluminum platform, the flatness it controlled within 0.1mm. |
 |
|
| Intelligent ink supply system - New ink cartridge design, with ink automatic circulation, ink shortage alarm function. | Lifting capping station design - The motor drives the capping station to rise and fall, precisely controls the position of the carriage and better protects the head. |
 |
|
| Multifunctional control panel - Humanized design, in line with human habits, flexible and easy to operate. | Full coverage shade cover - Light-shielding, dust-proof, touch-proof. |
Tips:
① printing process: White ink, color inks, varnish. You can print varnish before printing white to get a better result. Please use the hard UV ink or mild hard UV ink.
② Please laminate the film after printed to avoid exposure the adhensive in air. And cut the printed film at least 30 mins after laminating.
Warranty
> Lifetime Technical Support
> Limited to 1-year warranty on non-consumable parts
Exceptions: Consumable Items
All Printers: Components that come in contact with inks includes the ink system, print heads, capping station (ink station), dampers, ink pump, ink tank, ink mixer, ink lines and power pump, consumable parts like CR motor, encoder strip, belt, decoder, sensors, wiper, print head cables, fans, rip software (discs or digital).
Company or person requesting warranty repair shall contact CALCA for pre-authorization and selection of a qualified repair technician to service the equipment prior to performing service on the equipment. Failure to request pre-authorization for service repair and selection will result in denial of a warranty claim.
CALCA will not be liable for labor or material costs associated with graphic production, graphic application, equipment downtime or any other consequential damages including loss of profits or potential business sales, arising out of a warranty claim. It is the user's responsibility to secure the equipment and surrounding area to prevent damage from damages arising from a warranty claim. CALCA is not responsible for damages from improper care, maintenance or repair of equipment associated with normal operation.
Extended Warranty:
- Printers: Extend to 2 years for an additional $999
